Signal isolator application in automation system

Abstract:  In the automation system, its control, monitoring system of thenon electric analog sensor signal isolator wiring method effectively solves the analogsensor power supply security, stability and relatively independent, to ensure the operation safety control, monitoring subsystem screen power supply module and the analog acquisition module. Signal isolator can be isolated input signal and external equipment, at the same time achieve isolation between the received signal equipment.Can improve and complement system simulation I/O plug-in function, increase theapplicability and reliability of the system.

Keywords: signal isolators  signal transmitter  isolation amplifier  4-20mA/0-75mV/0-10V

Series of products: DIN11 IAP-V (A) -P-V (A)

      WAYJUN DIN11 IAP series of products adopt photoelectric isolated technology, can monitor the DC voltage / current signal.Small volume, low power consumption, high precision. The input, output and auxiliary power supply can withstand 2500VDC isolation voltage, can be flexibly applied. Widely used in electric power, chemical, petroleum, industrial and automation fields. This series of products through CE certification, safe and reliable!

Features:
>> Optical Isolation Amplifier Module
>> Accuracy grade: 0.1/0.2/0.5. Factory calibrated, the user can use directly
>> Auxiliary power supply: 5V/12V/15V/24VDC (± 10%)
>> International standard one signal input: 0-100mV/0-75mV/0-24V/0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA/0-±5V/0-±10V/0-±100mV/0-±20mA
>> Standard one output signal: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
>> High linearity (nonlinearity <0.2%)
>> DIN35 rail mounting
>> Size: 79.0x69.50.0x25.0mm
>> Strong anti-electromagnetic interference and high-frequency signal interference capability

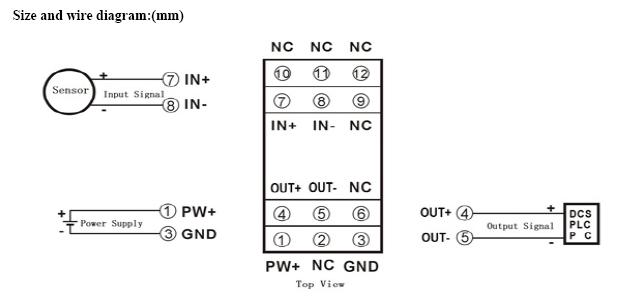

Product Listing:

DIN11 IAP- V(A) - P - V/I
Input Signal
Power Supply
Output Signal
voltagecodecurrent
code
Power
code
current
code
voltage
code
0-5V
V1
0-1mA
A1
24VDC
P1
0-20ma
A3
0-5V
V1
0-10V
V2
0-10mA
A2
12VDC
P2
4-20ma
A4
0-10V
V2
0-75mV
V3
0-20ma
A3
5VDC
P3
0~±20ma
A6
1-5V
V6
0-2.5V
V4
4-20mA
A4
15VDC
P4
user-defined
Az
0~±10V
V7
0~±5V
V5
0~±10mA
A5




user-defined
Vz
0~±10V
V7
0~±20mA
A6






0~±100mV
V10
user-defined
Az






user-defined
Vz









Samples:
1.Input:0-5V             Power Supply:24V  Output:4-20mA    Type No.: DIN11 IAP-V1-P1-A4
2.Input:0-10V           Power Supply:24V  Output:0-10V       Type No.: DIN11 IAP-V2-P1-V2
3.Input:4-20mA        Power Supply:24V  Output:4-20mA    Type No.: DIN11 IAP-A4-P1-A4

4.Input:0-100mV      Power Supply:24V  Output:4-20mA    Type No.: DIN11 IAP-Vz-P1-A4(Vz:0-100mV)
5.Input:0-75mV        Power Supply:12V  Output:0-10V       Type No.: DIN11 IAP-V3-P2-V2
6.Input:0~+/-10V     Power Supply:24V  Output:0-10V       Type No.: DIN11 IAP-V7-P1-V2

Download Datasheet : DIN11 IAP signal Conditioners.pdf
