24V to 5V pulse speed sensor analog signal isolation transmitter
24V to 5V pulse speed sensor analog signal isolation transmitter
Sine wave, square wave, sawtooth wave signal shaping, vehicle speed measurement,24V/5V pulse peed sensor special analog signal isolation transmitter Features: >> Speed sensor signal input, shaping square wave signal output >> 200mV peak weak signal amplification and shaping >> Sine wave, sawtooth signal input, square wave signal output >> No changing the original waveform frequency, fast response >> Input / output / power supply three-port 3000VDC isolation >> Power supply: 5V, 12V, 15V or 24V DC single power supply >> Low cost, small size, easy to use, high reliability >> Standard DIN35 rail mounting >> Size: 106.7x79.0x25.0mm >> Industrial temperature range: - 45 to + 85 ° C Application: >> Speed sensor signal isolation, acquisition and conversion >> Motor speed measurement >> Car ABS anti-lock braking system >> Speed signal amplification and shaping >> Ground interference suppression >> Motor speed monitoring system >> Velocity measurement alarm >> Signal no distortion transmitter and transmission Product Listing: DIN11 IAP – S□ - P□ – O□ Input Signal | Power | Output Signal | | Code | Power | Code | | Code | +/-signal input,sine wave input,peak value(VP-P):200mV~50V | S1 | 24VDC | P1 | output level 0-5V | O1 | single signal input, peak value(VP-P):5V | S2 | 12VDC | P2 | output level 0-12V | O2 | single signal input, peak value (VP-P):12V | S3 | 5VDC | P3 | output level 0-24V | O3 | single signal input, peak value (VP-P):24V | S4 | 15VDC | P4 | Open collector output | O4 | user-defined | Su | | | user-defined | Ou |

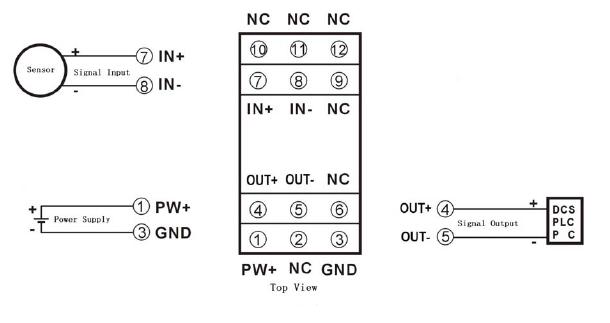

Samples: 1. Input:Speed sensor, sine wave VP-P: 200mV~10V,Power Supply:24V,Output:0-5V level Type No.:DIN11 IAP S1-P1-O1 2. Input:Speed sensor, sine wave VP-P: 200mV~10V,Power Supply:12V,Output:0-24V level Type No.:DIN11 IAP S1-P2-O3 3. Input:0-5V level Power Supply:24V Output:0-24V level Type No.:DIN11 IAP S2-P1-O3 4. Input:0-5V level Power Supply:12V Output:Open collector output Type No.:DIN11 IAP S2-P2-O4 5. Input:user-defined Power Supply:24V Output:user-defined Type No.:DIN11 IAP Su-P1-Ou 6. Input:differential signal Power Supply:24V Output:Open collector output Type No.:DIN11 IAP Su-P1-O4(Su:differential signal)


More details:http://www.wayjun.net/index.php?main_page=product_info&cPath=2&products_id=57
|
