15-20W 2:1 Wide Range Dual output DC DC Converter
  • Model: DW20-xxDxx
  • In Stock: 100000

15-20W 2:1 Wide Range Dual output DC DC Converter

$16.50
Features:>>2:1 Wide Input Voltage:9-18V,18-36V,36-72V,if 110V,input range is 85-125VDC>>Efficiency to 83%>>DIP Package>>1KVDC Isolation>>Single/Dual Output>>Regulated Output>>PCB Mounting>>Size:50.8x40.6x12.7mm>>Over Current Short...

Add to Cart:
Min:  2
  • Shipping Weight: 40lbs
  • This product was added to our catalog on Friday 08 August, 2014.
Description

Features:
>>2:1 Wide Input Voltage:9-18V,18-36V,36-72V,if 110V,input range is 85-125VDC
>>Efficiency to 83%
>>DIP Package
>>1KVDC Isolation
>>Single/Dual Output
>>Regulated Output
>>PCB Mounting

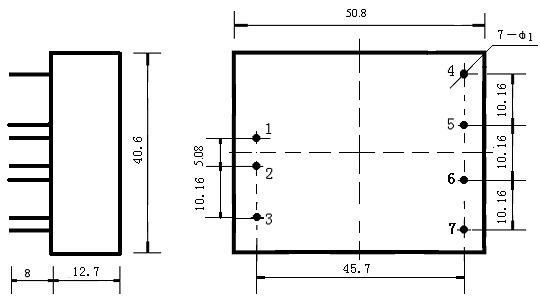

>>Size:50.8x40.6x12.7mm
>>Over Current Short Protection
>>Ripple and Noise:Vo≥48V,Vp-pmax≤200mV,Other output, Vp-pmax≤100mV

Products Listing:

Type No.
Input VoltageVDC
Output
Eff.
(%, Typ.)
Out Channel
Typ.
Range
Current (A)
Voltage (VDC)
DW20-12S12
12
9~18
1.66
12
83
Single
DW20-24S05
24
18~36
4.00
5
81
Single
DW20-24S12
24
18~36
1.66
12
83
Single
DW20-24S15
24
18~36
1.34
15
83
Single
DW20-24D05
24
18~36
±2.0
±5
81
Dual
DW20-24D12
24
18~36
±0.83
±12
82
Dual
DW20-24D15
24
18~36
±0.66
±15
82
Dual
DW20-48S05
48
36~72
4.0
5
82
Single
DW20-48S12
48
36~72
1.66
12
83
Single
DW20-48S15
48
36~72
1.34
15
83
Single
DW20-48D05
48
36~72
±2.0
±5
81
Dual
DW20-48D12
48
36~72
±0.83
±12
83
Dual
DW20-48D15
48
36~72
±0.66
±15
83
Dual
DW20-110S12
110V
85~125
±0.83
±12
81
Dual

Note:order online,please check the datasheet and note your part No. or details.

Download Datasheet : 15-20W DC DC Converters.pdf
