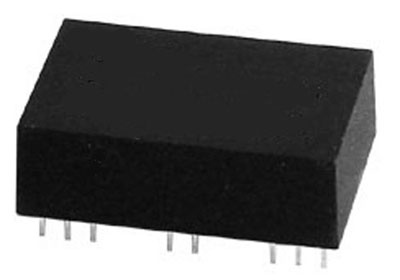

Two wires current loop isolator DIP24
Two wires current loop isolator DIP24
Two wires current loop isolator DIP24
  • Model: IAP1001
  • In Stock: 10000

Two wires current loop isolator DIP24

Features: >>2500VDC Isolation (input-output)>>Standard DIP24>>Power supply is 12-32VDC>>4-20ma current loop supply powerApplication:>>Industrial field sensor signal two-wire isolation>>4-20mA isolation signal transmission>>Ground interference...

Add to Cart:
Min:  5
  • Shipping Weight: 15lbs
  • This product was added to our catalog on Sunday 11 September, 2011.

>>2500VDC Isolation (input-output)
>>Standard DIP24
>>Power supply is 12-32VDC
>>4-20ma current loop supply power
>>Industrial field sensor signal two-wire isolation
>>4-20mA isolation signal transmission
>>Ground interference control

Part No.: IAP1001 (Voltage Signal input,two wires 4-20mA output)

 IAP1001, a voltage transmitter, is 4-20mA current loop isolation interface module, the module includes a current signal modulation circuit, an electromagnetic conversion circuit and a demodulation circuit isolation.
This module power supply range is 12-32VDC,small input equivalent resistance, high linearity, provides a 5V/3mA isolation voltage source and a 2.5V reference voltage source to the front-end circuit power distribution. Input signal is 0 ~ 75mVDC or higher, the output current signal corresponds to the input voltage signal change. Between input / output isolation voltage is 2500VAC.

Note:when you order,please note your part No.or details.

Download  Datasheet : Two wires current loop isolator.pdf
