Thermal resistance Ni1000, NTC, Pt100, thermocouple

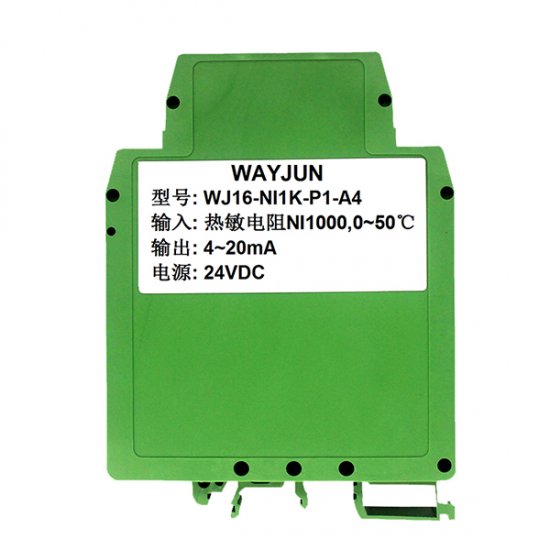

WJ16 series thermal resistors Ni1000, NTC, Pt100, thermocouples, etc Nonlinear signal isolation transmitter

Main features:
>>Input: Ni1000, NTC 10K, NTC 20K,
Pt100, Pt1000,Pt10,Cu50,Cu100,
Thermocouples J/K/T/E/R/S/B type, etc
(The temperature range for measurement can be customized)
(Nonlinear voltage and current signals can also be customized)
>>Output signals: Standard signals such as 4-20mA, 0-5V, 0-10V, etc
You can also choose a 12V PWM signal output
>>Auxiliary power supply: 5V, 9V, 12V, 15V or 24V DC single power supply
>>Industrial grade temperature range: -45~+85 ℃
>>Accuracy level: 0.1 level (FSR%, relative to temperature)
>>Contains linear algorithm processing and long line compensation functions
>>Isolation and withstand voltage: 2500VDC (1mA, 60S), input/output/power triple isolation
>>Installation method: DIN35 rail installation
>>External dimensions: 79x69.5x25mm

summary:
The thermal resistance temperature transmitter product developed by Weijunrui Technology is mainly used for Ni1000, NTC 10K, NTC 20K, Pt100，Pt1000，Pt10,
Cu50,Cu100， The isolation and transmission of signals from sensors such as thermocouples J/K/T/E/R/S/B (sensors need to be configured by the user) are mainly used in industry
To measure various temperature signals. The transmitter has linearization and long line compensation functions, and the data is processed by the microcontroller algorithm to ensure the output signal and temperature
Accurate correspondence, when measuring thermocouples, built-in temperature sensors can be used for cold end compensation. When leaving the factory, it is calibrated according to the national standard graduation table, achieving a precision level of 0.1 completely
Degree requirements. Special customization can also be made based on the indexing table provided by the user to meet their measurement needs. The connection between input, output, and auxiliary power supply is complete
Isolation (triple isolation), capable of withstanding an isolation withstand voltage of 2500VDC.

The product adopts the DIN35 international standard guide rail installation method, which is small in size, high in accuracy, stable in performance, and high in cost-effectiveness. It can be widely used in petroleum
Industries such as chemical, power, instrumentation, and industrial control.
The WJ16 series temperature signal isolation amplifier is very convenient to use. Simply connect the wires to achieve isolation and transmission of temperature signals. Specific selection can be made
You can refer to the product selection table or consult the customer service personnel of Weijunrui Technology.

General parameters:
Accuracy -0.1% (relative to temperature)
Input - Ni1000, NTC 10K, NTC 20K, default two line input
Pt100, Pt1000,Pt10,Cu50,Cu100,  Default three line input
Thermocouple J/K/T/E/R/S/B type two wire input
When ordering, it is necessary to select a temperature range that corresponds to the output.
Output - Standard voltage or current signal. It can also be customized by the user. You can also choose a 12V PWM signal output.
Response time ≤ 100mS
Auxiliary power supply - DC5V, 9V, 12V, 15V, 24V
Power:<1W
Temperature drift -50 ppm/℃ (typical value)
Load capacity - Voltage output: ≥ 2 k Ω
Current output: ≤ 450 Ω
Isolation - Three isolation of signal input/output/output/auxiliary power supply
Isolation voltage -2500VDC, 1 minute, leakage current of 1mA
Impulse withstand voltage -3KV, 1.2/50us (peak)
Working temperature: 40~+85 ℃
Storage temperature: 40~+85 ℃
Working humidity -10~90% (no condensation)
Storage humidity -10~95% (no condensation)

Product manual：https://www.wayjun.cn/d/
