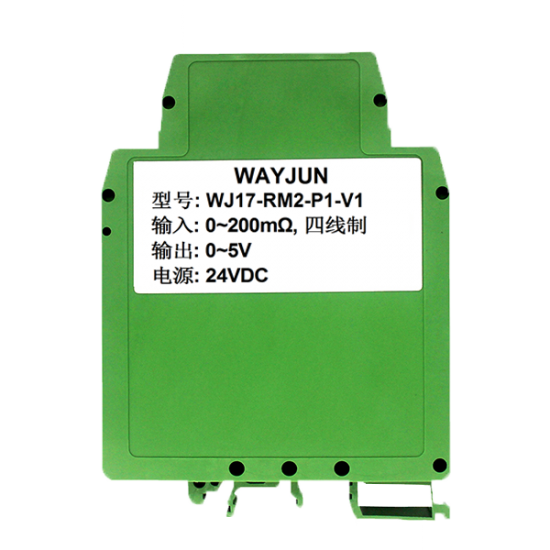

WJ17 series contact resistance conducting resistance four wire milliohm resistance signal isolation converter
Product features:
Four line measurement method with built-in high-precision constant current source
1mS high-speed conversion, conversion accuracy within 0.5%
Industrial grade temperature range: -40~+85 ℃
Power supply and signal: Input/output 3000VDC triple isolation
5VDC, 12VDC, 15VDC, 24VDC ± 10% single power supply
Products with a power supply greater than 5V have internal reverse protection.
0-100m Ω/0-200m Ω/0-500m Ω/0-1 Ω/0-10 Ω resistance signal input
International standard signal 0-5V/0-10V/4-20mA output
Strong resistance to EMC electromagnetic interference and suppression of high-frequency signal spatial interference characteristics
Standard DIN35 installation
Boundary dimensions: 79x69.5x25mm
Product application
Measurement of contact resistance signal
Conduction resistance measurement
Convert resistance signals into voltage signals
High precision resistance measurement
Measurement of connector resistance
Measurement of relay conduction resistance
Measurement of switch conduction resistance
Low resistance product quality inspection
Product Overview:
The WJ17 series four wire milliohm resistance signal isolation amplifier is a type of amplifier that isolates, amplifies, and converts small resistance signals into proportional output DC
Signal rail installation and transmission module. The product is widely used in machine equipment, connector production lines, mechanical relay production lines, instruments and meters, and medical equipment
Industries such as equipment and industrial automation. This series of modules is embedded with an efficient low-power power supply, providing isolated power supply to the input and output terminals
A photoelectric coupling isolation amplifier with analog signal output, using a four wire measurement method for input resistance, eliminating resistance errors caused by measuring wires
Poor, the product integrates a high load capacity reference current source output internally, which is used to provide measurement current for the measured resistance. Due to internal procurement
Compared to electromagnetic isolation, linear optoelectronic isolation technology has better resistance to EMC interference and spatial electromagnetic interference.
|
Product Selection Guide
WJ17 - RM -P - V/A
|
|
|
Enter model:
code
0-100mΩ RM1
0-200mΩ RM2
0-500mΩ RM3
0-1Ω RM4
0-5Ω RM5
0-10Ω RM6
User defined RMu |
Powersupply: P
P code
24VDC P1
12VDC P2
5VDC P3
15VDC P4
User defined Pu |
Output model:
Current: A code
0-20mA A3
4-20mA A4
User defined Au
0-5V V1
0-10V V2
User defined Vu |
Example of product selection:
Example 1: Input: 0-100 m Ω Auxiliary power supply: 24V Output: 4-20mA
Product model: WJ17-RM1-P1-A4
Example 2: Input: 0-200 m Ω Auxiliary power supply: 12V Output: 0-5V
Product model: WJ17-RM2-P2-V1 |
|
|
| |
|
|
Product manual：https://www.wayjun.cn/d/
