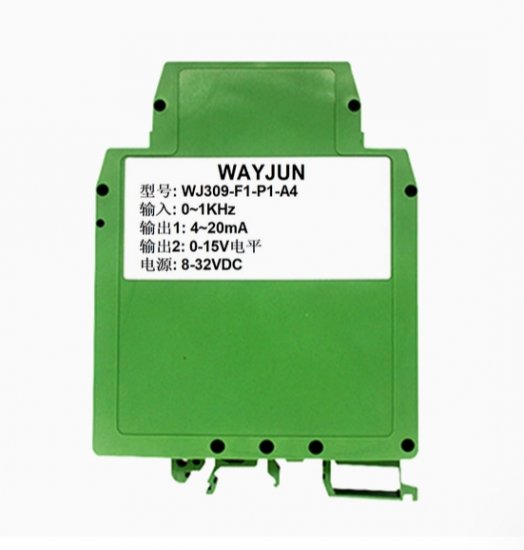

Encoder frequency signal to voltage or current signalWJ309

Encoder frequency signal to voltage or current signal with forward and reverse identification output WJ309
Product Features:

● Accuracy level: 0.2

● High linearity within the full range (non-linearity <0.1%)

● Input frequency signal: 0-1KHz / 0-5KHz / 0-10KHz

● Supports PNP or NPN encoder input

● Outputs standard 0-2.5V/0-5V/0-10V voltage signals or 0-10mA/0-20mA/4-20mA current signals

● Outputs a 15V level signal to indicate forward and reverse rotation

● Wide power supply range: 8 ~ 32VDC

● Input terminal has a 5V power output to power the encoder

● Auxiliary power supply/signal input/signal output: 3000VDC triple isolation

● Small size, standard DIN35 rail-mounted installation

● Industrial temperature range: -45~+80 ℃

Typical applications:

● Frequency sensor signal acquisition, isolation, and conversion

● Frequency converter (FA) frequency signal data acquisition and control

● Rotation speed monitoring of rotating equipment such as generators and motors

● Transformer operating frequency detection

● Instrumentation and sensor signal transmission and reception

● Encoder signal conversion

● Speed signal measurement

Product selection examples:

Example 1: Input: 0-1KHz; Power Supply: 24V; Output: 0-5V; Forward and Reverse Output at 15V Level; Model: DIN11 IAP F1-P1-V1

Example 2: Input: 0-5KHz; Power Supply: 12V; Output: 4-20mA; Forward and Reverse Output at 15V Level; Model: DIN11 IAP F2-P2-A4

Example 3: Input: 0-10KHz; Power Supply: 24V; Output: 0-10V; Forward and Reverse Output at 15V Level; Model: DIN11 IAP F3-P1-V2

Example 4: Input: 0-10KHz; Power Supply: 24V; Output: 4-20mA; Forward and Reverse Output at 15V Level; Model: DIN11 IAP F3-P1-A4

Example 5: Input: User-defined; Power Supply: 24V; Output: User-defined, Forward and Reverse Output via NPN; Model: DIN11 IAP Fu-P1-Vu-NPN

Product manual：https://www.wayjun.cn/d/
