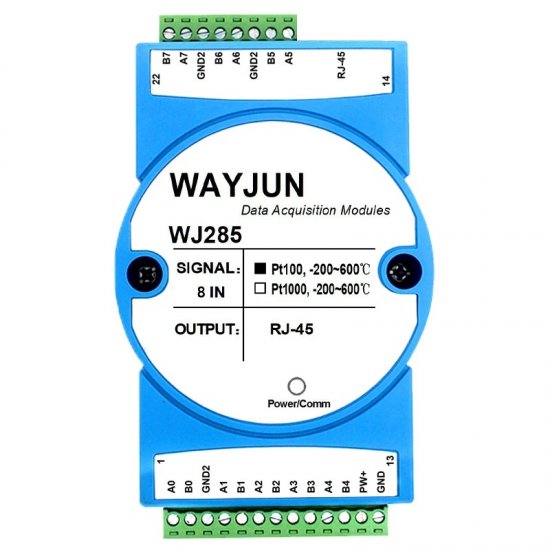

8-channel Pt100/Pt1000 temperature to Modbus TCP and MQTT network data acquisition module WJ285
Product features:
Convert 8-channel Pt100/Pt1000 thermistor to standard Modbus TCP protocol
Supports communication protocols such as TCP Server, UDP, MQTT, etc
Built in web page function, data can be queried through web pages
Standard 3-wire measurement method with automatic long line compensation
Using a 12 bitAD converter, the measurement accuracy is better than 0.1%
The accuracy of the calibration module can be programmed through the network
Wide power supply range: 8~32VDC
High reliability, easy programming, and easy application
Standard DIN35 rail installation, convenient for centralized wiring
Users can set module IP addresses and other parameters on the webpage
Low cost, small size, modular design
Dimensions: 106 mm x 59mm x 37mm
Typical applications:
Signal measurement, monitoring, and MQTT reporting
TCPnetwork, data collection
Intelligent building control, security engineering and other application systems
Industrial automation control system diagram of TCP network,
Equipment operation monitoring, MES system
Measurement of sensor signals
Acquisition and recording of industrial field data
Development of medical and industrial control products
Pt100/Pt1000 temperature signal measurement
Product Overview:
The WJ285 product is an IoT and industrial Ethernet acquisition module that enables transparent data exchange between sensors and networks. Can be transmitted
The analog data of the sensor is forwarded to the network.
| |
Product model:
WJ285- Z -RJ45 |
|
| Input type: Z |
Communication interface: RJ45 |
|
code explain
Z1 PT100,-200~600℃
Z5 PT1000,-200~600℃ |
RJ45
Output as RJ-45 network interface
|
Selection example 1: Model: WJ285-Z1-RJ45 represents 8-channel PT100,-200~600 ℃ signal input, and output is
RJ-45 network interface
Selection Example 2: Model: WJ285-Z5-RJ45 represents 8-channel PT1000, with-200~600 ℃ signal input and RJ-45
network interface output
|
Product manual：https://www.wayjun.cn/d/
