Features:
>> 8-channel NPN signal to PNP signal high-speed conversion
>> 8 channels 0-5V level to 0-24V level
>> 8 channels of TTL level to 0-24V level
>> 8 channels of NPN signal to TTL level
>> 8 channels 0-24V level to 0-5V level
>> Supports input signal and output signal level inversion
>> Level conversion speed can reach 1MHz
>> Isolation 3000VDC between input and output
>> Wide power supply range: 8 ~ 32VDC
>> Standard DIN35 rail, for centralized wiring
>> Size: 120 x 60 x 43 mm
Application:
>> Level conversion between different devices
>> Encoder signal is connected to PLC
>> Intelligent building control, security engineering and other application systems
>> DI isolator for industrial automation control system
>> Industrial field signal isolation and long-term transmission
>> Equipment operation monitoring
>> Sensor signal measurement
>> Motor speed monitoring system
>> Ground wire interference suppression
>> Photoelectric switch etc. digital signal acquisition such as
| Signal input |
Signal output |
Frequency response |
| NPN: open collector, passive input PNP: 0-5V level, 0-24V level TTL level etc. active voltage signal input ZDY: user-defined, special parameters customization |
TTL: 0-5V level, TTL level output NPN: open collector output, the output is a passive switching signal PNP: low level 0V The high-level voltage is the power supply voltage minus 1V. Output 0-24V level , use 24V power supply Output 0-15V level, use 15V power supply Output 0-12V level, use 12V power supply ZDY: user-defined, special parameters customization |
Default: up to 1MHz 1MHz: up to 1MHz 1KHz: up to 1KHz Product default value is high speed 1MHz, If need low speed 1KHz, please specify. |
| |
|
|
Selection Guide:
1. NPN input, PNP output, frequency response is 1MHz

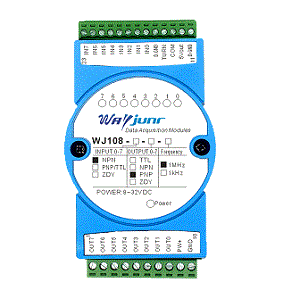

Type No.: WJ108-NPN-PNP
2. 0-5V level input, 0-24V level output, frequency response is 1MHz
Type No.: WJ108-PNP-PNP, use 24VDC power supply
3. 0-5V level input, 0-12V level output, frequency response is 1MHz
Type No.: WJ108-PNP-PNP, use 12VDC power supply
4. NPN input, PNP output, frequency response is 1KHz
Type No.: WJ108-NPN-PNP-1KHz
5. 0-5V level input, 0-24V level output, frequency response is 1KHz
Type No.: WJ108-PNP-PNP-1KHz, use 24VDC power supply
6. 0-5V level input, 0-12V level output, frequency response is 1KHz
Type No.: WJ108-PNP-PNP-1KHz, use 12VDC power supply
7. NPN input, TTL output, frequency response is 1MHz
Type No.: WJ108-NPN-TTL
8. 0-24V input, TTL output, frequency response is 1MHz
Type No.: WJ108-PNP-TTL
