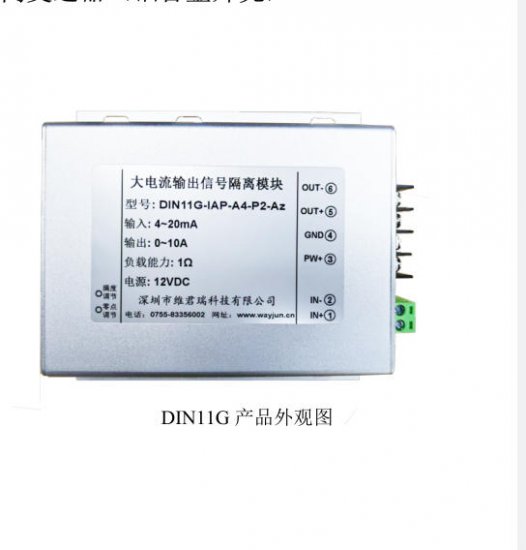

DIN11G Series 10A High-Current Signal Isolation Transmitter
Main Features:
>> Accuracy and Linearity Error Levels: Level 0.2 and Level 0.5
>> Standard Signal Inputs: 4-20mA, 0-5V, 0-10V, etc.
>> Current Signal Outputs: 0-8A, 0-10A, etc.
>> Voltage Signal Outputs: 0~1V (max 10A), 0~10V, 0-24V (max 10A), etc.
>> Signal Input/Output Isolation: 3000VDC
>> Auxiliary Power Supply: 24V DC Single Supply
>> Auxiliary Power Supply and Output Signal Not Isolated
>> Screw-Mounted Installation, Plug-in Terminal Blocks
>> Dimensions: 120 x 105 x 29mm
>> Industrial Temperature Range: -45 ~ +85 ℃
Applications:
>> Industrial Field Signal Isolation and Amplification
>> Current Signal Amplification or Voltage Signal Drive Capability Enhancement
>> Solenoid Valve, Proportional Valve Linear Driver
>> Solenoid Switch Linear Controller
>> Solenoid Drive Coil or High-Power Load
>> Ground Interference Suppression
Product selection table:
DIN11G IAP - V(A)□ - P□ – V(A)□
DIN11G IAP - V(A)□ - P□ – V(A)□ |
|
|
Input signal
voltage code current code
0-5V V1 0-1mA A1
0-10V V2 0-10mA A2
0-75mV V3 0-20ma A3
0-2.5V V4 4-20mA A4
user-defined Vz user-defined Az |
power supply
Power code
24VDC P1 |
output signal
current voltage
user-defined Az 0~5V V1
0-10V V2
1-5V V6
user-defined Vz |
Note: Please inform us of the size of the output load resistor when placing your order.
Selection examples: Example 1: Input signal: 0-10V, power supply: 24V, output signal: 0-10A, load resistance: 2 ohms, model: DIN11G IAP V2-P1-Az. |
Note: Please inform us of the size of the output load resistor when placing your order.
Example 2: Input signal: 0-10V, power supply: 12V, output signal: 0-10V, load resistance: 1 ohm, model: DIN11G IAP V2-P2-V2. |
Note: Please inform us of the size of the output load resistor when placing your order.
Example 3: Input signal: 0-3V, power supply: 24V, output signal: 0-24V, load: 10A, model: DIN11G IAP Vz-P1-Vz |
