Features:
>> Optical Isolation
>> Accuracy grade: 0.1/0.2. Factory calibrated, the user can use directly.
>> Auxiliary power supply: 5V/12V/15V/24VDC
>> Four international standard signal input: 0-100mV/ 0-75mV/0-24V/0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
>> Four standard output signal: 0-5V / 0-10V/1-5V, 0-10mA / 0-20mA/4-20mA
>> High linearity (nonlinearity <0.2%)
>> DIN35 rail mounting
>> Size: 120 x 70 x 43mm
>> Strong anti-electromagnetic interference and high-frequency signal interference capability
Application:
>> Analog signal data isolation, collection and transformation
>> Isolated 4-20mA or 0-20mA signal transmission
>> Signal isolation and conversion of industrial site
>> Long-term signal transfer without distortion
>> Instrument signal transceiver
>> Power monitoring, medical equipment isolation
>> Ground interference suppression
>> PLC / FA motor control signal isolation
Products Listing:

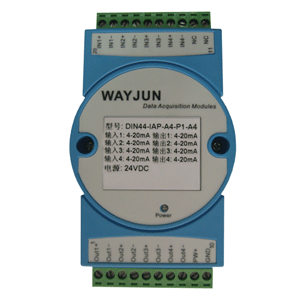

DIN44 IAP – V(A)□ - P□ – V(A)□
|
Input Signal
|
Power Supply
|
Output Signal
|
|
Voltage
|
code
|
Current
|
code
|
Power
|
code
|
Current
|
code
|
Voltage
|
code
|
|
0-5V
|
V1
|
0-1mA
|
A1
|
24VDC
|
P1
|
0-20ma
|
A3
|
0~5V
|
V1
|
|
0-10V
|
V2
|
0-10mA
|
A2
|
12VDC
|
P2
|
4-20ma
|
A4
|
0-10V
|
V2
|
|
0-75mV
|
V3
|
0-20ma
|
A3
|
5VDC
|
P3
|
user-defined
|
Az
|
1-5V
|
V6
|
|
0-2.5
|
V4
|
4-20mA
|
A4
|
15VDC
|
P4
|
|
|
user-defined
|
Vz
|
|
user-defined
|
Vz
|
user-defined
|
Az
|
|
|
|
|
|
|
Samples:
1.Input:four 0-5V Power Supply:24V Output:four 4-20mA Type No.: DIN44 IAP V1-P1-A4
2.Input:four 0-10V Power Supply:24V Output:four 0-10V Type No.: DIN44 IAP V2-P1-V2
3.Input:four 4-20mA Power Supply:24V Output:four 4-20mA Type No.: DIN44 IAP A4-P1-A4
4.Input:four 1-5V Power Supply:24V Output:four 4-20mA Type No.: DIN44 IAP Vz-P1-A4(Vz:1-5V)
